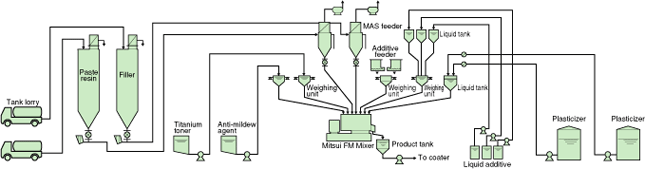

This shows the flow chart for the mixing of paste resin which is used to coat wallpaper used in interior decorating.
A major feature of this equipment is that the granules of paste resin are pneumatically conveyed by a MAS feeder and weighed.
Depending on the properties of the paste resin, a feeder unit is used to automatically bag the paste resin in a paper bag. The mixing process is effected with a FM Mixer. This effects dispersion of the ingredients which include paste resin, filler, plasticizer, foaming agent, anti-mildew agent, titanium, additives, stabilizers, thinner and etc. to create a uniform sol. |
 |
|
| Products |
： |
PVC wallpaper |
|
Installed capacity |
： |
300 - 1,000 tons/month |
|
